◉ Multi Stage Training#
2 Stage Training of Yolo on VCoR Dataset
BTW… a 2 stage training is not really needed for such a small dataset - its just an experience
import os
import matplotlib.pyplot as plt
from pathlib import Path
from collections import Counter
from PIL import Image
import random
import torch
from torchvision import transforms
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader
import torch
import torch.nn as nn
from ultralytics.models.yolo import YOLO
from torch.optim import AdamW
from torch.optim.lr_scheduler import CosineAnnealingLR
import numpy as np
from sklearn.metrics import (
classification_report,
confusion_matrix,
precision_score,
recall_score,
f1_score,
accuracy_score,
top_k_accuracy_score,
)
import seaborn as sns
Load the VCoR dataset
DATASET_ROOT = Path("vcor/")
CLASS_NAMES = sorted(os.listdir(DATASET_ROOT / "train"))
print(f"Number of classes: {len(CLASS_NAMES)}")
print(f"Classes: {CLASS_NAMES}")
Number of classes: 15
Classes: ['beige', 'black', 'blue', 'brown', 'gold', 'green', 'grey', 'orange', 'pink', 'purple', 'red', 'silver', 'tan', 'white', 'yellow']

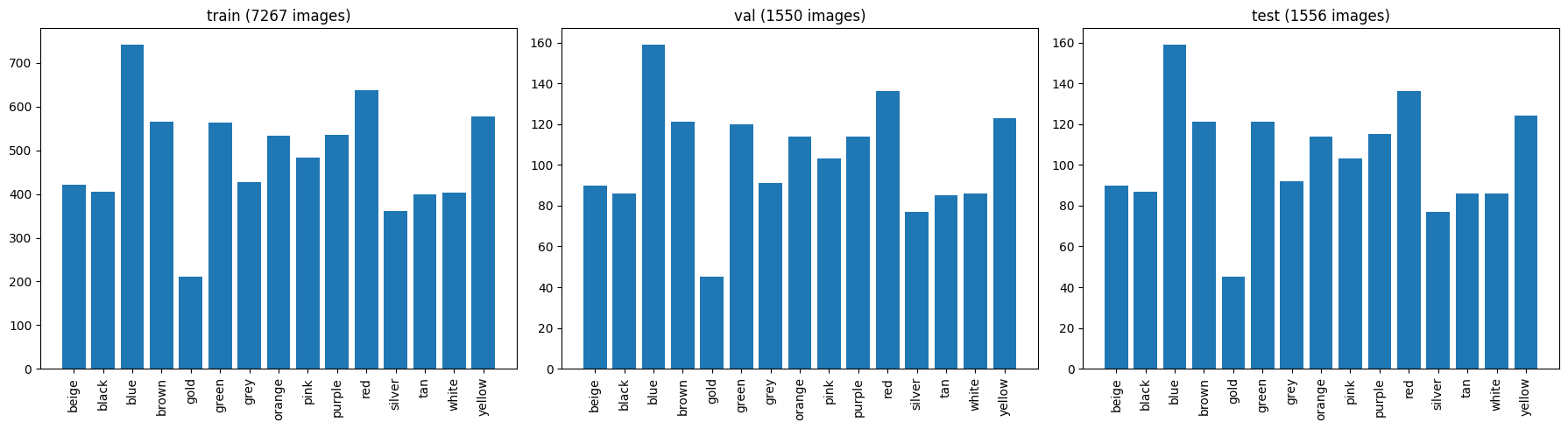

class distribution for splits (training, validation, test)
def count_samples(split_dir):
counts = {}
for cls in CLASS_NAMES:
cls_dir = split_dir / cls
counts[cls] = len(list(cls_dir.glob("*"))) if cls_dir.exists() else 0
return counts
splits = ["train", "val", "test"]
fig, axes = plt.subplots(1, 3, figsize=(18, 5))
for ax, split in zip(axes, splits):
counts = count_samples(DATASET_ROOT / split)
ax.bar(counts.keys(), counts.values())
ax.set_title(f"{split} ({sum(counts.values())} images)")
ax.tick_params(axis='x', rotation=90)
plt.tight_layout()
plt.show()

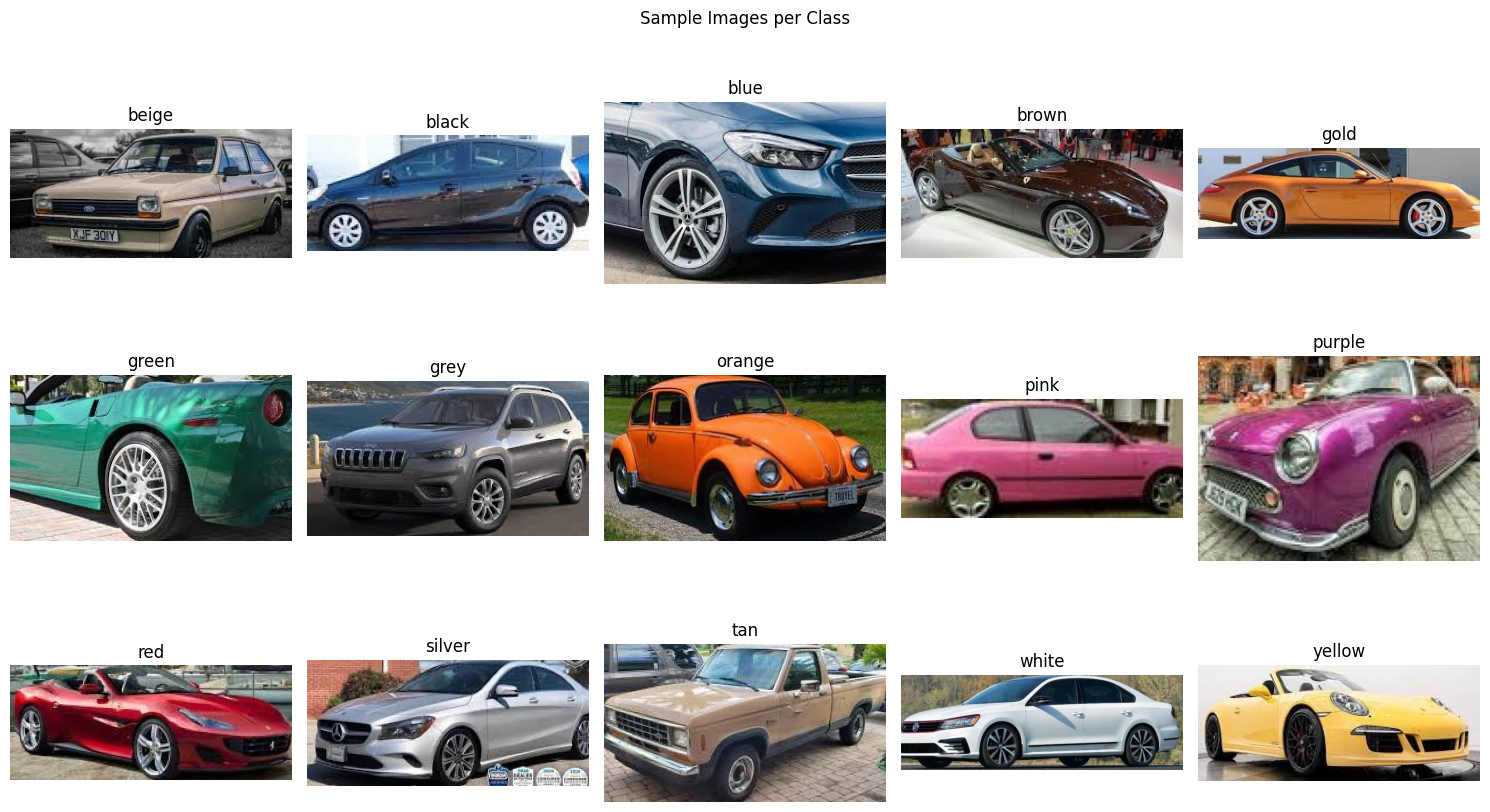

sample images
fig, axes = plt.subplots(3, 5, figsize=(15, 9))
for i, cls in enumerate(CLASS_NAMES):
imgs = list((DATASET_ROOT / "train" / cls).glob("*"))
img = Image.open(random.choice(imgs))
ax = axes[i // 5, i % 5]
ax.imshow(img)
ax.set_title(cls)
ax.axis("off")
plt.suptitle("Sample Images per Class")
plt.tight_layout()
plt.show()
define transforms pipeline for training and validation
IMG_SIZE = 320
train_transforms = transforms.Compose([
transforms.Resize((IMG_SIZE, IMG_SIZE)),
transforms.RandomHorizontalFlip(p=0.5),
transforms.RandomRotation(degrees=15),
transforms.ColorJitter(brightness=0.4, contrast=0.4, saturation=0.4, hue=0.15),
transforms.RandomAffine(degrees=10, translate=(0.1, 0.1), scale=(0.9, 1.1)),
transforms.RandomPerspective(distortion_scale=0.2, p=0.3),
transforms.GaussianBlur(kernel_size=3, sigma=(0.1, 1.0)),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]),
])
val_test_transforms = transforms.Compose([
transforms.Resize((IMG_SIZE, IMG_SIZE)),
transforms.ToTensor(),
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]),
])
Create training, test and validation DataLoader
train_dataset = ImageFolder(root=DATASET_ROOT / "train", transform=train_transforms)
val_dataset = ImageFolder(root=DATASET_ROOT / "val", transform=val_test_transforms)
test_dataset = ImageFolder(root=DATASET_ROOT / "test", transform=val_test_transforms)
print("Class to Index:", train_dataset.class_to_idx)
Class to Index: {'beige': 0, 'black': 1, 'blue': 2, 'brown': 3, 'gold': 4, 'green': 5, 'grey': 6, 'orange': 7, 'pink': 8, 'purple': 9, 'red': 10, 'silver': 11, 'tan': 12, 'white': 13, 'yellow': 14}
BATCH_SIZE = 32
NUM_WORKERS = 4
train_loader = DataLoader(train_dataset, batch_size=BATCH_SIZE, shuffle=True,
num_workers=NUM_WORKERS, pin_memory=True)
val_loader = DataLoader(val_dataset, batch_size=BATCH_SIZE, shuffle=False,
num_workers=NUM_WORKERS, pin_memory=True)
test_loader = DataLoader(test_dataset, batch_size=BATCH_SIZE, shuffle=False,
num_workers=NUM_WORKERS, pin_memory=True)
print(f"Train: {len(train_dataset)} \nVal: {len(val_dataset)} \nTest: {len(test_dataset)}")
Train: 7267
Val: 1550
Test: 1556
Model#
use Yolo backbone for feature extraction and replace the final head with a linear classifier for 15 color classes
base_model = YOLO("yolov8m-cls.pt")
NUM_CLASSES = 15
model = base_model.model.model
classifer_head = model[-1]
print("Original Classifier Head:", classifer_head)
Original Classifier Head: Classify(
(conv): Conv(
(conv): Conv2d(768, 1280, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(1280, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(pool): AdaptiveAvgPool2d(output_size=1)
(drop): Dropout(p=0.0, inplace=True)
(linear): Linear(in_features=1280, out_features=1000, bias=True)
)
mutate the linear layer to create 15 class as output
in_features = classifer_head.linear.in_features
classifer_head.linear = nn.Linear(in_features, NUM_CLASSES)
print("Modified Classifier Head:", classifer_head)
Modified Classifier Head: Classify(
(conv): Conv(
(conv): Conv2d(768, 1280, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(1280, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(pool): AdaptiveAvgPool2d(output_size=1)
(drop): Dropout(p=0.0, inplace=True)
(linear): Linear(in_features=1280, out_features=15, bias=True)
)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
full_model = base_model.model.to(device)
print(f"Using device: {device}")
print(f"Total params: {sum(p.numel() for p in full_model.parameters()):,}")
full_model
Using device: cuda
Total params: 15,791,551
ClassificationModel(
(model): Sequential(
(0): Conv(
(conv): Conv2d(3, 48, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn): BatchNorm2d(48, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(1): Conv(
(conv): Conv2d(48, 96, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(2): C2f(
(cv1): Conv(
(conv): Conv2d(96, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(192, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(m): ModuleList(
(0-1): 2 x Bottleneck(
(cv1): Conv(
(conv): Conv2d(48, 48, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(48, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(48, 48, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(48, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
)
)
)
(3): Conv(
(conv): Conv2d(96, 192, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(4): C2f(
(cv1): Conv(
(conv): Conv2d(192, 192, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(576, 192, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(m): ModuleList(
(0-3): 4 x Bottleneck(
(cv1): Conv(
(conv): Conv2d(96, 96, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(96, 96, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(96, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
)
)
)
(5): Conv(
(conv): Conv2d(192, 384, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(6): C2f(
(cv1): Conv(
(conv): Conv2d(384, 384, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(1152, 384, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(m): ModuleList(
(0-3): 4 x Bottleneck(
(cv1): Conv(
(conv): Conv2d(192, 192, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(192, 192, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(192, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
)
)
)
(7): Conv(
(conv): Conv2d(384, 768, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(8): C2f(
(cv1): Conv(
(conv): Conv2d(768, 768, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(1536, 768, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(768, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(m): ModuleList(
(0-1): 2 x Bottleneck(
(cv1): Conv(
(conv): Conv2d(384, 384, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(cv2): Conv(
(conv): Conv2d(384, 384, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn): BatchNorm2d(384, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
)
)
)
(9): Classify(
(conv): Conv(
(conv): Conv2d(768, 1280, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn): BatchNorm2d(1280, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(act): SiLU(inplace=True)
)
(pool): AdaptiveAvgPool2d(output_size=1)
(drop): Dropout(p=0.0, inplace=True)
(linear): Linear(in_features=1280, out_features=15, bias=True)
)
)
)
Training Setup#
# Hyperparameters
EPOCHS = 30
LR = 1e-3
WEIGHT_DECAY = 5e-4
optimizer = AdamW(full_model.parameters(), lr=LR, weight_decay=WEIGHT_DECAY)
scheduler = CosineAnnealingLR(optimizer, T_max=EPOCHS, eta_min=1e-6)
loss_fn = nn.CrossEntropyLoss()
def train_one_epoch(model, dataloader, optimizer, loss_fn, device):
# set the model in training mode
model.train()
running_loss = 0
correct = 0
total = 0
for images, labels in dataloader:
images, labels = images.to(device), labels.to(device)
optimizer.zero_grad()
outputs = model(images)
if isinstance(outputs, tuple):
outputs = outputs[0]
loss = loss_fn(outputs, labels)
loss.backward()
optimizer.step()
running_loss += loss.item() * images.size(0)
_, predicted = torch.max(outputs, 1)
correct += (predicted == labels).sum().item()
total += labels.size(0)
epoch_loss = running_loss / total
epoch_acc = 100.0 * correct / total
return epoch_loss, epoch_acc
@torch.no_grad()
def evaluate(model, dataloader, loss_fn, device):
model.eval()
running_loss = 0
correct = 0
total = 0
for images, labels in dataloader:
images, labels = images.to(device), labels.to(device)
outputs = model(images)
if isinstance(outputs, tuple):
outputs = outputs[0]
loss = loss_fn(outputs, labels)
running_loss += loss.item() * images.size(0)
_, predicted = torch.max(outputs, 1)
correct += (predicted == labels).sum().item()
total += labels.size(0)
epoch_loss = running_loss / total
epoch_acc = 100.0 * correct / total
return epoch_loss, epoch_acc
2 Stage training#
Stage 1: freeze backbone, train only classification head
STAGE1_EPOCHS = 20
STAGE1_LR = 1e-3
# freeze backbone
for name, param in full_model.named_parameters():
param.requires_grad = False
# Unfreeze only the classify head
for param in model[-1].parameters():
param.requires_grad = True
trainable = sum(p.numel() for p in full_model.parameters() if p.requires_grad)
total = sum(p.numel() for p in full_model.parameters())
print(f"Stage 1 \n--> Trainable params: {trainable:,} (head) / {total:,} (total) \n--> i.e. trainable params ({100*trainable/total:.1f}%)")
Stage 1
--> Trainable params: 1,004,815 (head) / 15,791,551 (total)
--> i.e. trainable params (6.4%)
optimizer_s1 = AdamW(filter(lambda p: p.requires_grad, full_model.parameters()),
lr=STAGE1_LR, weight_decay=WEIGHT_DECAY)
scheduler_s1 = CosineAnnealingLR(optimizer_s1, T_max=STAGE1_EPOCHS, eta_min=1e-5)
history = {"train_loss": [], "train_acc": [], "val_loss": [], "val_acc": [], "stage": []}
best_val_acc = 0.0
print("\n--- Stage 1: Head-only training ---")
for epoch in range(STAGE1_EPOCHS):
train_loss, train_acc = train_one_epoch(full_model, train_loader,
optimizer_s1, loss_fn, device)
val_loss, val_acc = evaluate(full_model, val_loader, loss_fn, device)
scheduler_s1.step()
history["train_loss"].append(train_loss)
history["train_acc"].append(train_acc)
history["val_loss"].append(val_loss)
history["val_acc"].append(val_acc)
history["stage"].append(1)
print(f" S1 Epoch [{epoch+1}/{STAGE1_EPOCHS}] "
f"Train: {train_loss:.4f} (loss) / {train_acc:.2f}% (acc) | "
f"Val: {val_loss:.4f} (loss) / {val_acc:.2f}% (acc)")
if val_acc > best_val_acc:
best_val_acc = val_acc
torch.save(full_model.state_dict(), "best_vcor_yolo_cls.pt")
print(f" ✓ Saved (val_acc={val_acc:.2f}%)")
print(f"\nStage 1 Best Val Acc: {best_val_acc:.2f}%")
--- Stage 1: Head-only training ---
S1 Epoch [1/20] Train: 1.6054 (loss) / 46.04% (acc) | Val: 2.3285 (loss) / 64.32% (acc)
✓ Saved (val_acc=64.32%)
S1 Epoch [2/20] Train: 1.1699 (loss) / 58.75% (acc) | Val: 2.3026 (loss) / 63.16% (acc)
S1 Epoch [3/20] Train: 1.0337 (loss) / 63.05% (acc) | Val: 2.2765 (loss) / 65.81% (acc)
✓ Saved (val_acc=65.81%)
S1 Epoch [4/20] Train: 0.9745 (loss) / 65.63% (acc) | Val: 2.2560 (loss) / 66.39% (acc)
✓ Saved (val_acc=66.39%)
S1 Epoch [5/20] Train: 0.9224 (loss) / 67.96% (acc) | Val: 2.2419 (loss) / 67.68% (acc)
✓ Saved (val_acc=67.68%)
S1 Epoch [6/20] Train: 0.8708 (loss) / 69.45% (acc) | Val: 2.2489 (loss) / 67.42% (acc)
S1 Epoch [7/20] Train: 0.8222 (loss) / 71.53% (acc) | Val: 2.2256 (loss) / 69.61% (acc)
✓ Saved (val_acc=69.61%)
S1 Epoch [8/20] Train: 0.7795 (loss) / 72.44% (acc) | Val: 2.2181 (loss) / 68.32% (acc)
S1 Epoch [9/20] Train: 0.7611 (loss) / 73.72% (acc) | Val: 2.2209 (loss) / 69.03% (acc)
S1 Epoch [10/20] Train: 0.7172 (loss) / 75.63% (acc) | Val: 2.2127 (loss) / 70.52% (acc)
✓ Saved (val_acc=70.52%)
S1 Epoch [11/20] Train: 0.6902 (loss) / 76.25% (acc) | Val: 2.2177 (loss) / 68.65% (acc)
S1 Epoch [12/20] Train: 0.6499 (loss) / 77.67% (acc) | Val: 2.2141 (loss) / 68.45% (acc)
S1 Epoch [13/20] Train: 0.6422 (loss) / 77.94% (acc) | Val: 2.2015 (loss) / 70.58% (acc)
✓ Saved (val_acc=70.58%)
S1 Epoch [14/20] Train: 0.6196 (loss) / 79.07% (acc) | Val: 2.2053 (loss) / 69.61% (acc)
S1 Epoch [15/20] Train: 0.6005 (loss) / 79.96% (acc) | Val: 2.2041 (loss) / 69.94% (acc)
S1 Epoch [16/20] Train: 0.5968 (loss) / 79.99% (acc) | Val: 2.1933 (loss) / 71.03% (acc)
✓ Saved (val_acc=71.03%)
S1 Epoch [17/20] Train: 0.5809 (loss) / 80.47% (acc) | Val: 2.2057 (loss) / 69.16% (acc)
S1 Epoch [18/20] Train: 0.5862 (loss) / 80.60% (acc) | Val: 2.1945 (loss) / 70.39% (acc)
S1 Epoch [19/20] Train: 0.5776 (loss) / 80.61% (acc) | Val: 2.1874 (loss) / 71.42% (acc)
✓ Saved (val_acc=71.42%)
S1 Epoch [20/20] Train: 0.5773 (loss) / 80.86% (acc) | Val: 2.1873 (loss) / 70.97% (acc)
Stage 1 Best Val Acc: 71.42%
Stage 2: unfreeze all layers, finetune end to end
STAGE2_EPOCHS = 25
STAGE2_LR = 1e-4
# Unfreeze everything
for param in full_model.parameters():
param.requires_grad = True
trainable = sum(p.numel() for p in full_model.parameters() if p.requires_grad)
print(f"Stage 2 — All {trainable:,} params unfrozen")
optimizer_s2 = AdamW(full_model.parameters(), lr=STAGE2_LR, weight_decay=WEIGHT_DECAY)
scheduler_s2 = CosineAnnealingLR(optimizer_s2, T_max=STAGE2_EPOCHS, eta_min=1e-6)
print("\n--- Stage 2: Full e2e fine-tuning ---")
for epoch in range(STAGE2_EPOCHS):
train_loss, train_acc = train_one_epoch(full_model, train_loader,
optimizer_s2, loss_fn, device)
val_loss, val_acc = evaluate(full_model, val_loader, loss_fn, device)
scheduler_s2.step()
history["train_loss"].append(train_loss)
history["train_acc"].append(train_acc)
history["val_loss"].append(val_loss)
history["val_acc"].append(val_acc)
history["stage"].append(2)
print(f" S2 Epoch [{epoch+1}/{STAGE2_EPOCHS}] "
f"Train: {train_loss:.4f} (loss) / {train_acc:.2f}% (acc) | "
f"Val: {val_loss:.4f} (loss) / {val_acc:.2f}% (acc)")
if val_acc > best_val_acc:
best_val_acc = val_acc
torch.save(full_model.state_dict(), "best_vcor_yolo_cls.pt")
print(f" ✓ Saved (val_acc={val_acc:.2f}%)")
print(f"\nOverall Best Val Acc: {best_val_acc:.2f}%")
Stage 2 — All 15,791,551 params unfrozen
--- Stage 2: Full e2e fine-tuning ---
S2 Epoch [1/25] Train: 0.4611 (loss) / 84.49% (acc) | Val: 2.1248 (loss) / 76.65% (acc)
✓ Saved (val_acc=76.65%)
S2 Epoch [2/25] Train: 0.3987 (loss) / 87.15% (acc) | Val: 2.1175 (loss) / 76.45% (acc)
S2 Epoch [3/25] Train: 0.3463 (loss) / 88.69% (acc) | Val: 2.1066 (loss) / 77.61% (acc)
✓ Saved (val_acc=77.61%)
S2 Epoch [4/25] Train: 0.3108 (loss) / 89.89% (acc) | Val: 2.0999 (loss) / 77.74% (acc)
✓ Saved (val_acc=77.74%)
S2 Epoch [5/25] Train: 0.2681 (loss) / 92.32% (acc) | Val: 2.0925 (loss) / 78.26% (acc)
✓ Saved (val_acc=78.26%)
S2 Epoch [6/25] Train: 0.2274 (loss) / 93.37% (acc) | Val: 2.0769 (loss) / 79.23% (acc)
✓ Saved (val_acc=79.23%)
S2 Epoch [7/25] Train: 0.1994 (loss) / 94.03% (acc) | Val: 2.0849 (loss) / 78.06% (acc)
S2 Epoch [8/25] Train: 0.1801 (loss) / 94.76% (acc) | Val: 2.0847 (loss) / 77.81% (acc)
S2 Epoch [9/25] Train: 0.1606 (loss) / 95.65% (acc) | Val: 2.0758 (loss) / 79.10% (acc)
S2 Epoch [10/25] Train: 0.1352 (loss) / 96.50% (acc) | Val: 2.0745 (loss) / 78.65% (acc)
S2 Epoch [11/25] Train: 0.1229 (loss) / 97.08% (acc) | Val: 2.0673 (loss) / 78.97% (acc)
S2 Epoch [12/25] Train: 0.1183 (loss) / 96.79% (acc) | Val: 2.0587 (loss) / 80.00% (acc)
✓ Saved (val_acc=80.00%)
S2 Epoch [13/25] Train: 0.1131 (loss) / 97.15% (acc) | Val: 2.0614 (loss) / 79.48% (acc)
S2 Epoch [14/25] Train: 0.0981 (loss) / 97.69% (acc) | Val: 2.0556 (loss) / 79.74% (acc)
S2 Epoch [15/25] Train: 0.0893 (loss) / 97.99% (acc) | Val: 2.0520 (loss) / 80.52% (acc)
✓ Saved (val_acc=80.52%)
S2 Epoch [16/25] Train: 0.0829 (loss) / 98.09% (acc) | Val: 2.0510 (loss) / 80.32% (acc)
S2 Epoch [17/25] Train: 0.0752 (loss) / 98.45% (acc) | Val: 2.0552 (loss) / 79.16% (acc)
S2 Epoch [18/25] Train: 0.0674 (loss) / 98.67% (acc) | Val: 2.0463 (loss) / 80.84% (acc)
✓ Saved (val_acc=80.84%)
S2 Epoch [19/25] Train: 0.0647 (loss) / 98.68% (acc) | Val: 2.0473 (loss) / 80.65% (acc)
S2 Epoch [20/25] Train: 0.0629 (loss) / 98.68% (acc) | Val: 2.0516 (loss) / 79.81% (acc)
S2 Epoch [21/25] Train: 0.0620 (loss) / 98.78% (acc) | Val: 2.0467 (loss) / 80.13% (acc)
S2 Epoch [22/25] Train: 0.0585 (loss) / 98.97% (acc) | Val: 2.0418 (loss) / 80.90% (acc)
✓ Saved (val_acc=80.90%)
S2 Epoch [23/25] Train: 0.0597 (loss) / 98.79% (acc) | Val: 2.0428 (loss) / 81.35% (acc)
✓ Saved (val_acc=81.35%)
S2 Epoch [24/25] Train: 0.0562 (loss) / 98.87% (acc) | Val: 2.0443 (loss) / 80.90% (acc)
S2 Epoch [25/25] Train: 0.0581 (loss) / 98.79% (acc) | Val: 2.0456 (loss) / 80.84% (acc)
Overall Best Val Acc: 81.35%
Metrics#
Recall : Of all the images that are actually red, how many did the model find?
Precision : Of everything the model predicted as red, how many were actually red?
F1 : harmonic mean or recall and precision i.e. it punishes cases where one is high and the other is low
@torch.no_grad()
def get_predictions(model, loader, device):
"""Collect all predictions and ground truth labels."""
model.eval()
all_preds = []
all_labels = []
all_probs = [] # for top-k accuracy
for images, labels in loader:
images = images.to(device)
outputs = model(images)
# Ultralytics ClassificationModel returns a tuple; extract the logits tensor
if isinstance(outputs, tuple):
outputs = outputs[0]
probs = torch.softmax(outputs, dim=1)
_, predicted = outputs.max(1)
all_preds.extend(predicted.cpu().numpy())
all_labels.extend(labels.numpy())
all_probs.extend(probs.cpu().numpy())
return np.array(all_labels), np.array(all_preds), np.array(all_probs)
full_model.load_state_dict(torch.load("best_vcor_yolo_cls.pt"))
y_true, y_pred, y_probs = get_predictions(full_model, test_loader, device)
print("=" * 70)
print("CLASSIFICATION REPORT")
print("=" * 70)
print(classification_report(y_true, y_pred, target_names=CLASS_NAMES, digits=4))
# --- Overall Metrics ---
overall_acc = accuracy_score(y_true, y_pred)
macro_prec = precision_score(y_true, y_pred, average="macro")
macro_recall = recall_score(y_true, y_pred, average="macro")
macro_f1 = f1_score(y_true, y_pred, average="macro")
weighted_f1 = f1_score(y_true, y_pred, average="weighted")
top3_acc = top_k_accuracy_score(y_true, y_probs, k=3)
top5_acc = top_k_accuracy_score(y_true, y_probs, k=5)
print(f"Overall Accuracy : {overall_acc:.4f}")
print(f"Macro Precision : {macro_prec:.4f}")
print(f"Macro Recall : {macro_recall:.4f}")
print(f"Macro F1-Score : {macro_f1:.4f}")
print(f"Weighted F1-Score : {weighted_f1:.4f}")
print(f"Top-3 Accuracy : {top3_acc:.4f}")
print(f"Top-5 Accuracy : {top5_acc:.4f}")
======================================================================
CLASSIFICATION REPORT
======================================================================
precision recall f1-score support
beige 0.4615 0.6000 0.5217 90
black 0.9259 0.8621 0.8929 87
blue 0.9167 0.8994 0.9079 159
brown 0.6901 0.8099 0.7452 121
gold 0.5417 0.5778 0.5591 45
green 0.9192 0.7521 0.8273 121
grey 0.7419 0.7500 0.7459 92
orange 0.6847 0.6667 0.6756 114
pink 0.8830 0.8058 0.8426 103
purple 0.8796 0.8261 0.8520 115
red 0.7926 0.7868 0.7897 136
silver 0.8596 0.6364 0.7313 77
tan 0.5301 0.5116 0.5207 86
white 0.8889 0.9302 0.9091 86
yellow 0.7465 0.8548 0.7970 124
accuracy 0.7686 1556
macro avg 0.7641 0.7513 0.7545 1556
weighted avg 0.7802 0.7686 0.7714 1556
Overall Accuracy : 0.7686
Macro Precision : 0.7641
Macro Recall : 0.7513
Macro F1-Score : 0.7545
Weighted F1-Score : 0.7714
Top-3 Accuracy : 0.9653
Top-5 Accuracy : 0.9852

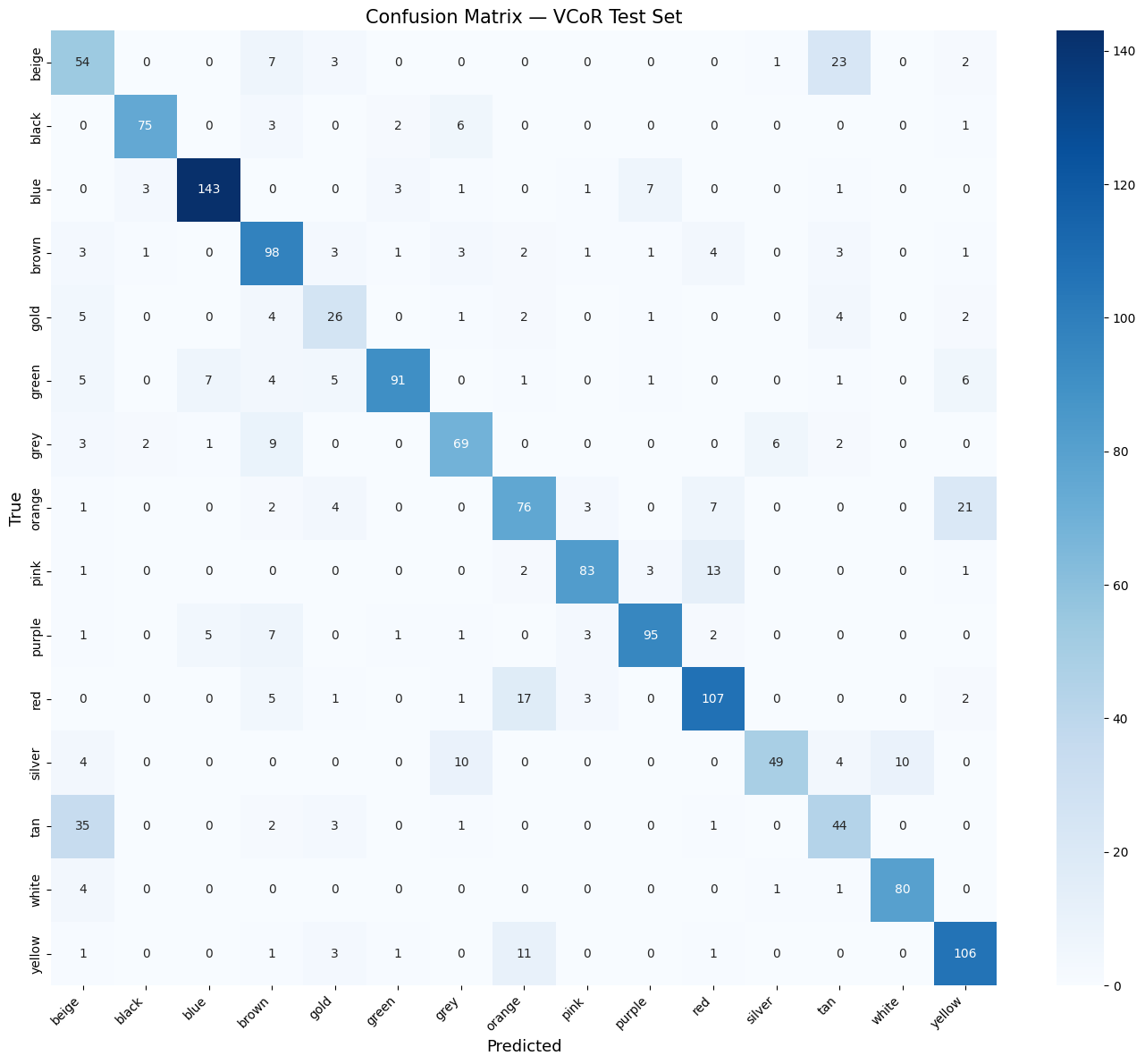

Confusion Matrix#
cm = confusion_matrix(y_true, y_pred)
fig, ax = plt.subplots(figsize=(14, 12))
sns.heatmap(cm, annot=True, fmt="d", cmap="Blues",
xticklabels=CLASS_NAMES, yticklabels=CLASS_NAMES, ax=ax)
ax.set_xlabel("Predicted", fontsize=13)
ax.set_ylabel("True", fontsize=13)
ax.set_title("Confusion Matrix — VCoR Test Set", fontsize=15)
plt.xticks(rotation=45, ha="right")
plt.tight_layout()
plt.show()

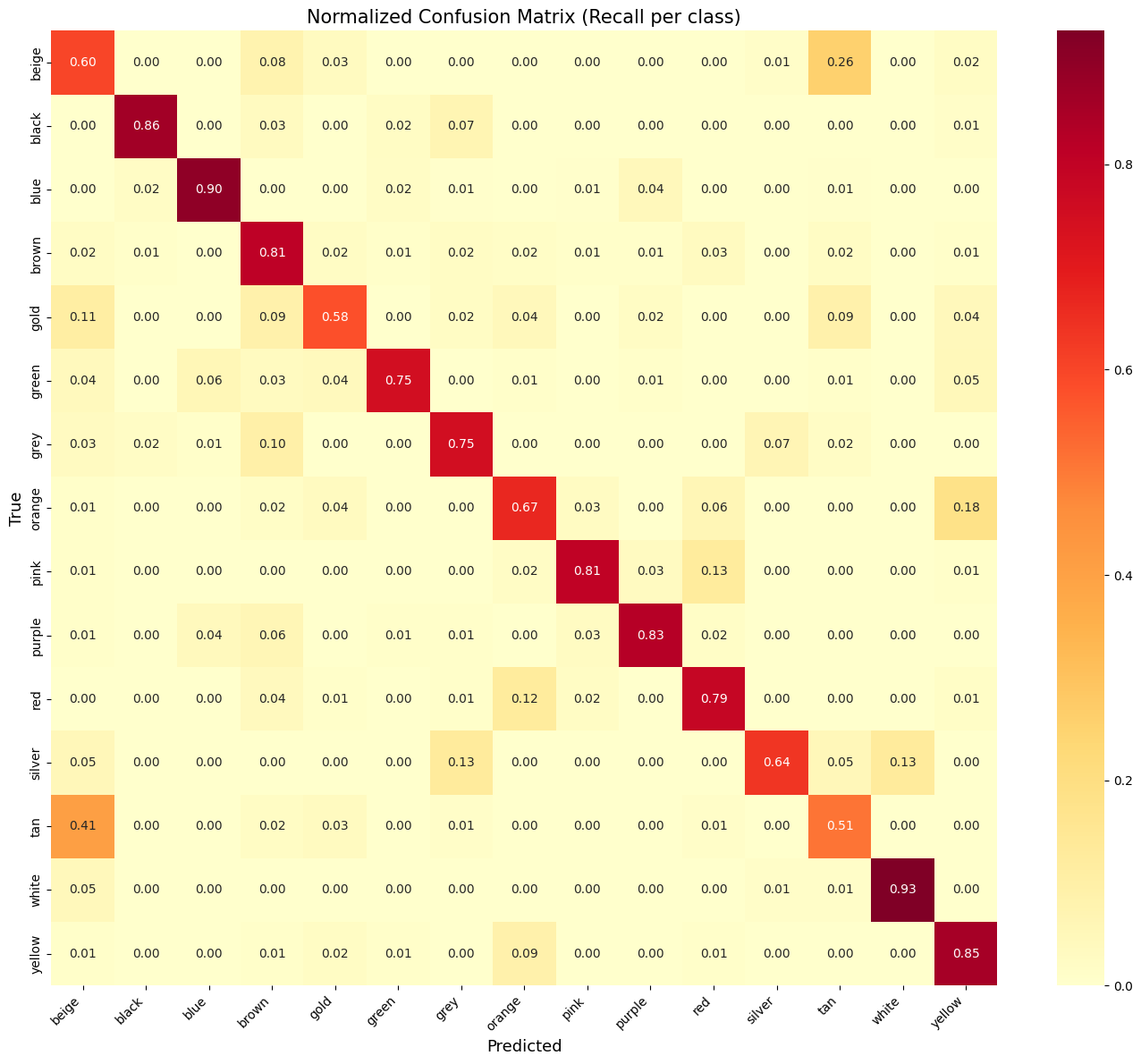

Normalized confusion matrix
cm_norm = cm.astype("float") / cm.sum(axis=1)[:, np.newaxis]
fig, ax = plt.subplots(figsize=(14, 12))
sns.heatmap(cm_norm, annot=True, fmt=".2f", cmap="YlOrRd",
xticklabels=CLASS_NAMES, yticklabels=CLASS_NAMES, ax=ax)
ax.set_xlabel("Predicted", fontsize=13)
ax.set_ylabel("True", fontsize=13)
ax.set_title("Normalized Confusion Matrix (Recall per class)", fontsize=15)
plt.xticks(rotation=45, ha="right")
plt.tight_layout()
plt.show()

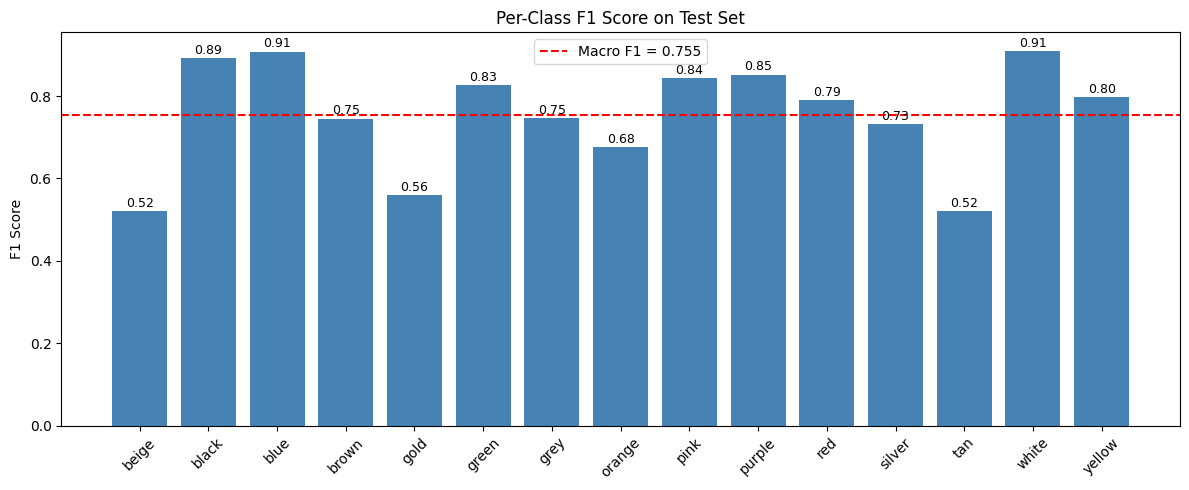

per class F1 barchart
from sklearn.metrics import f1_score as f1_per_class
per_class_f1 = f1_score(y_true, y_pred, average=None)
fig, ax = plt.subplots(figsize=(12, 5))
bars = ax.bar(CLASS_NAMES, per_class_f1, color="steelblue")
ax.axhline(y=macro_f1, color="red", linestyle="--", label=f"Macro F1 = {macro_f1:.3f}")
ax.set_ylabel("F1 Score")
ax.set_title("Per-Class F1 Score on Test Set")
ax.legend()
ax.tick_params(axis='x', rotation=45)
for bar, val in zip(bars, per_class_f1):
ax.text(bar.get_x() + bar.get_width() / 2, bar.get_height() + 0.01,
f"{val:.2f}", ha="center", fontsize=9)
plt.tight_layout()
plt.show()

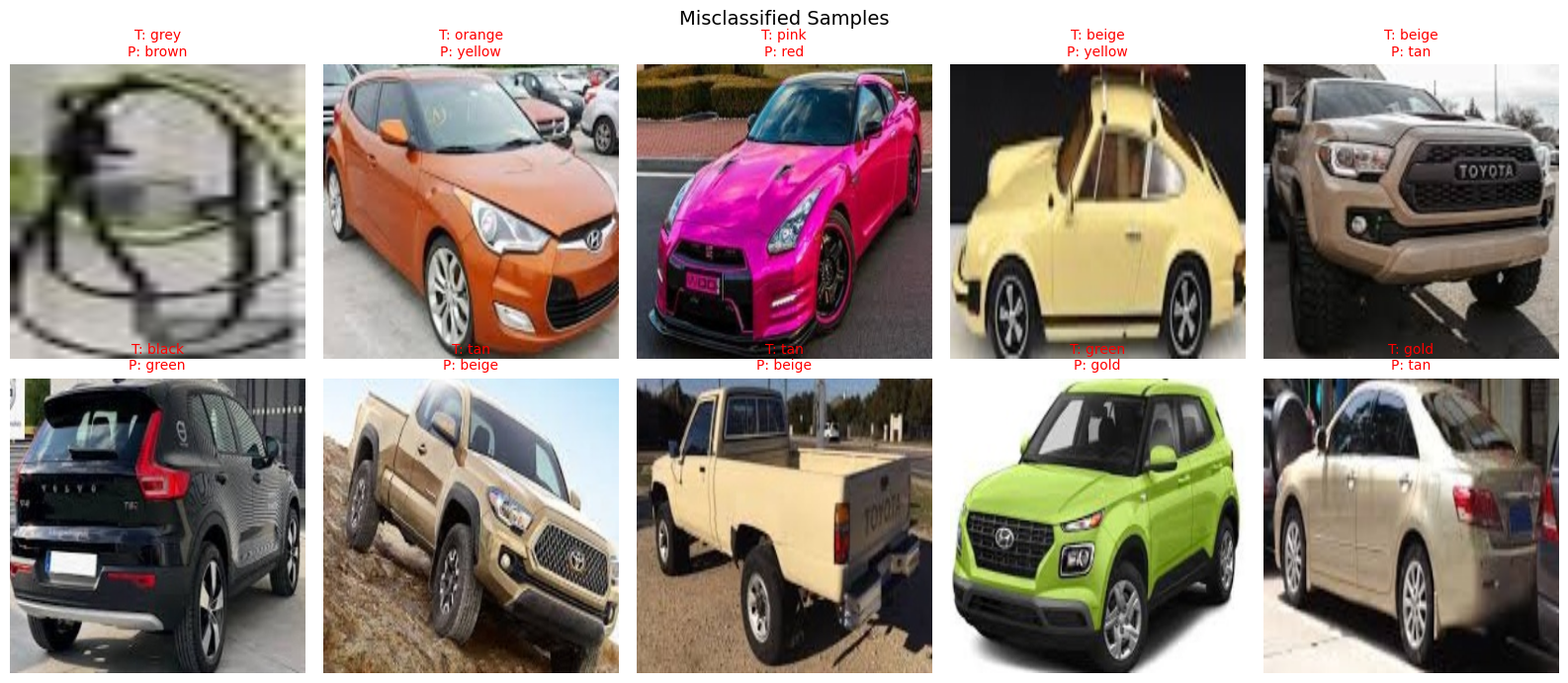

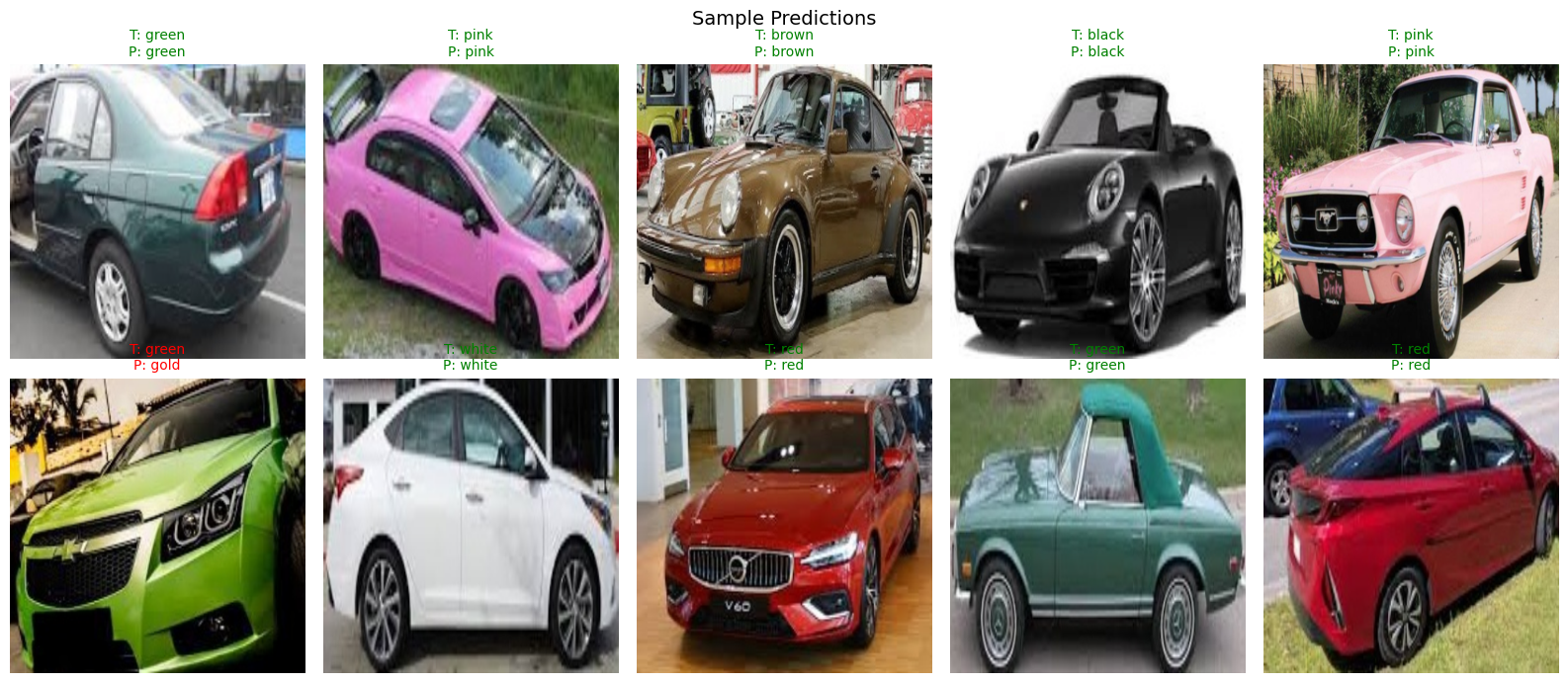

Sample correct and wrong predictions
def show_predictions(dataset, y_true, y_pred, class_names, n=10, only_wrong=False):
indices = np.arange(len(y_true))
if only_wrong:
indices = indices[y_true != y_pred]
title = "Misclassified Samples"
else:
title = "Sample Predictions"
selected = np.random.choice(indices, min(n, len(indices)), replace=False)
fig, axes = plt.subplots(2, 5, figsize=(16, 7))
for i, idx in enumerate(selected):
img, _ = dataset[idx]
# Denormalize for visualization
img = img * torch.tensor([0.229, 0.224, 0.225]).view(3, 1, 1) + \
torch.tensor([0.485, 0.456, 0.406]).view(3, 1, 1)
img = img.permute(1, 2, 0).clamp(0, 1).numpy()
ax = axes[i // 5, i % 5]
ax.imshow(img)
color = "green" if y_true[idx] == y_pred[idx] else "red"
ax.set_title(f"T: {class_names[y_true[idx]]}\n"
f"P: {class_names[y_pred[idx]]}", color=color, fontsize=10)
ax.axis("off")
plt.suptitle(title, fontsize=14)
plt.tight_layout()
plt.show()
# Show correct & wrong predictions
show_predictions(test_dataset, y_true, y_pred, CLASS_NAMES, n=10, only_wrong=False)
show_predictions(test_dataset, y_true, y_pred, CLASS_NAMES, n=10, only_wrong=True)
Onnx export#
dummy_input = torch.randn(1, 3, IMG_SIZE, IMG_SIZE).to(device)
full_model.eval()
torch.onnx.export(
full_model,
dummy_input,
"vcor_yolo_cls.onnx",
opset_version=17,
input_names=["images"],
output_names=["output"],
dynamic_axes={"images": {0: "batch"}, "output": {0: "batch"}},
)
print("Exported to vcor_yolo_cls.onnx")
# Save class names for later use
with open("vcor_labels.txt", "w") as f:
for name in CLASS_NAMES:
f.write(name + "\n")
print("Saved class names to vcor_labels.txt")
/tmp/ipykernel_3442/4285357340.py:4: UserWarning: # 'dynamic_axes' is not recommended when dynamo=True, and may lead to 'torch._dynamo.exc.UserError: Constraints violated.' Supply the 'dynamic_shapes' argument instead if export is unsuccessful.
torch.onnx.export(
W0307 21:02:35.609000 3442 torch/onnx/_internal/exporter/_compat.py:125] Setting ONNX exporter to use operator set version 18 because the requested opset_version 17 is a lower version than we have implementations for. Automatic version conversion will be performed, which may not be successful at converting to the requested version. If version conversion is unsuccessful, the opset version of the exported model will be kept at 18. Please consider setting opset_version >=18 to leverage latest ONNX features
W0307 21:02:35.828000 3442 torch/onnx/_internal/exporter/_schemas.py:455] Missing annotation for parameter 'input' from (input, boxes, output_size: 'Sequence[int]', spatial_scale: 'float' = 1.0, sampling_ratio: 'int' = -1, aligned: 'bool' = False). Treating as an Input.
W0307 21:02:35.829000 3442 torch/onnx/_internal/exporter/_schemas.py:455] Missing annotation for parameter 'boxes' from (input, boxes, output_size: 'Sequence[int]', spatial_scale: 'float' = 1.0, sampling_ratio: 'int' = -1, aligned: 'bool' = False). Treating as an Input.
W0307 21:02:35.830000 3442 torch/onnx/_internal/exporter/_schemas.py:455] Missing annotation for parameter 'input' from (input, boxes, output_size: 'Sequence[int]', spatial_scale: 'float' = 1.0). Treating as an Input.
W0307 21:02:35.831000 3442 torch/onnx/_internal/exporter/_schemas.py:455] Missing annotation for parameter 'boxes' from (input, boxes, output_size: 'Sequence[int]', spatial_scale: 'float' = 1.0). Treating as an Input.
[torch.onnx] Obtain model graph for `ClassificationModel([...]` with `torch.export.export(..., strict=False)`...
[torch.onnx] Obtain model graph for `ClassificationModel([...]` with `torch.export.export(..., strict=False)`... ✅
[torch.onnx] Run decomposition...
/usr/lib/python3.12/copyreg.py:99: FutureWarning: `isinstance(treespec, LeafSpec)` is deprecated, use `isinstance(treespec, TreeSpec) and treespec.is_leaf()` instead.
return cls.__new__(cls, *args)
The model version conversion is not supported by the onnxscript version converter and fallback is enabled. The model will be converted using the onnx C API (target version: 17).
Failed to convert the model to the target version 17 using the ONNX C API. The model was not modified
Traceback (most recent call last):
File "/home/n03an/code/deepstream_custom_parser/.venv/lib/python3.12/site-packages/onnxscript/version_converter/__init__.py", line 120, in call
converted_proto = _c_api_utils.call_onnx_api(
^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/n03an/code/deepstream_custom_parser/.venv/lib/python3.12/site-packages/onnxscript/version_converter/_c_api_utils.py", line 65, in call_onnx_api
result = func(proto)
^^^^^^^^^^^
File "/home/n03an/code/deepstream_custom_parser/.venv/lib/python3.12/site-packages/onnxscript/version_converter/__init__.py", line 115, in _partial_convert_version
return onnx.version_converter.convert_version(
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/home/n03an/code/deepstream_custom_parser/.venv/lib/python3.12/site-packages/onnx/version_converter.py", line 39, in convert_version
converted_model_str = C.convert_version(model_str, target_version)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
RuntimeError: /github/workspace/onnx/version_converter/adapters/axes_input_to_attribute.h:65: adapt: Assertion `node->hasAttribute(kaxes)` failed: No initializer or constant input to node found
[torch.onnx] Run decomposition... ✅
[torch.onnx] Translate the graph into ONNX...
[torch.onnx] Translate the graph into ONNX... ✅
Applied 77 of general pattern rewrite rules.
Exported to vcor_yolo_cls.onnx
Saved class names to vcor_labels.txt
